HSB-sigma® 120-ZRSD with toothed belt drive
HSB-sigma® 120-ZRSD

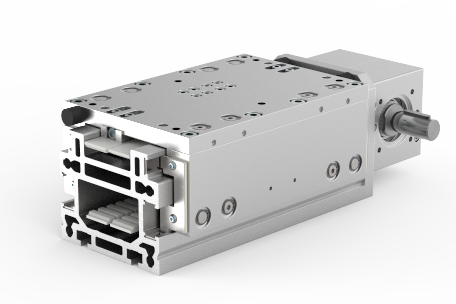

Portal linear drive size 120 with 2 circulating toothed belt drives, 2 independently travelling carriages and external HSB roller guide:
| max. speed: | v = 8 m/s |
| max. acceleration: | a = 60 m/s² |
| max. guide load: | FZ = 3000 N |
| max. feed force: | FX = 1800 N |
- Aluminium profile 120 x 100 mm with 6 slots for stainless guide band
- 16 x HSB LR 28 rollers, dynamic load rating Cdyn = 3200 N, static load rating Cstat = 1300 N
- 2 toothed belts 25ATL10, synchronous pulley with 20 teeth = 200 mm/revolution
- 1 standard carriage length 220 mm, special lengths available
