3D model product configurator

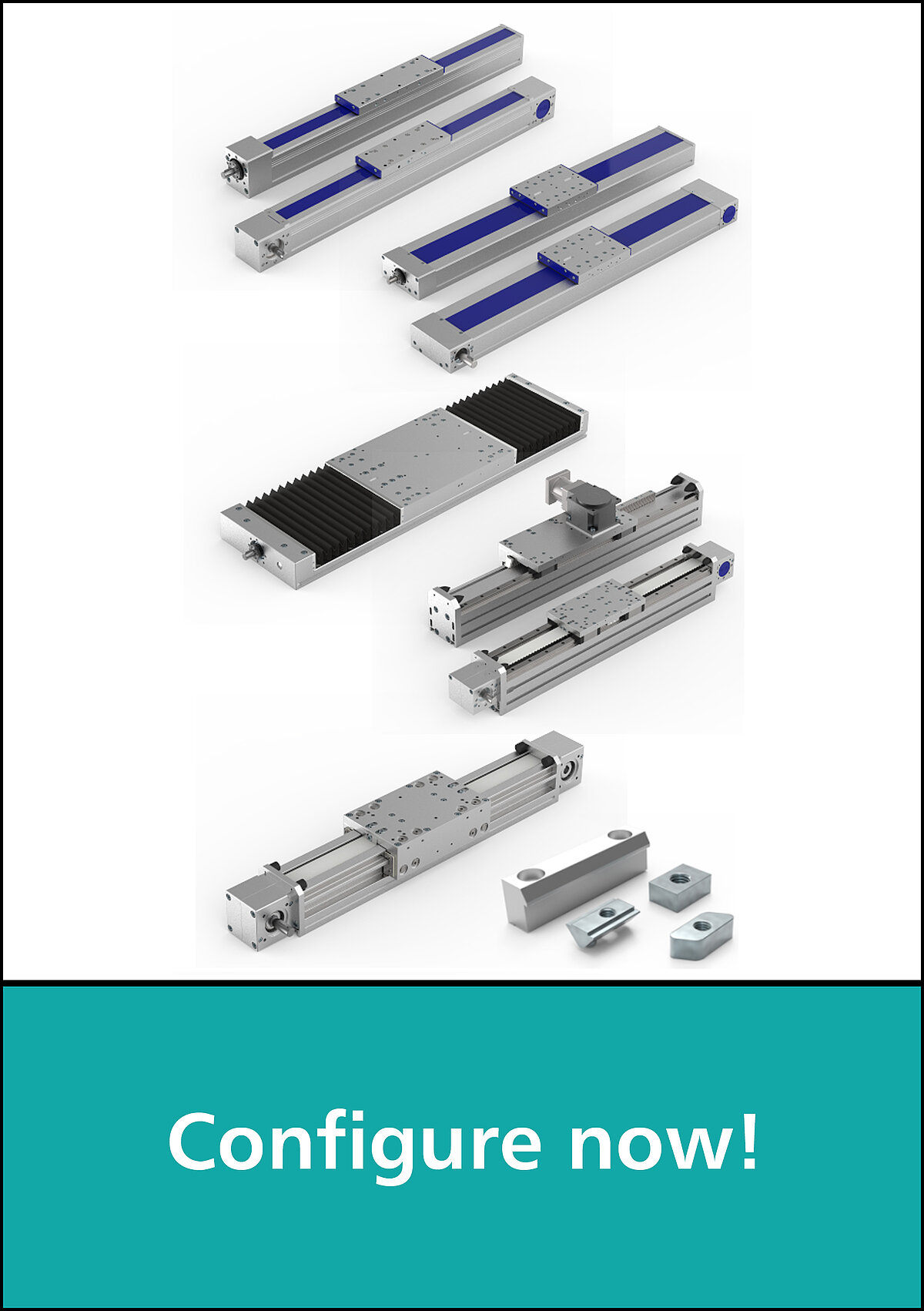

Finally available: With the new HSB product configurator, you can quickly and easily configure 3D models of our HSB-beta® linear units and HSB-delta® compact linear units! Benefit from the rapid availability of the CAD data.

Further product ranges will follow soon.

This is how it works:

Select your desired linear unit, define the design and stroke length, add limit switches, mounting brackets, etc. and request your drawing directly in pdf format and request the corresponding 3D model in step format. You will then receive an e-mail with your download link.

System requirements:

You need one of the following browser versions:

  • Firefox Version 63
  • Chrome 73
  • Edge 79 or
  • Safari 12.1

Configure your linear unit now. Go directly to our product configurator here.

Do you have any questions or do you need help? Then get in touch with us, we would be happy to help you further.
